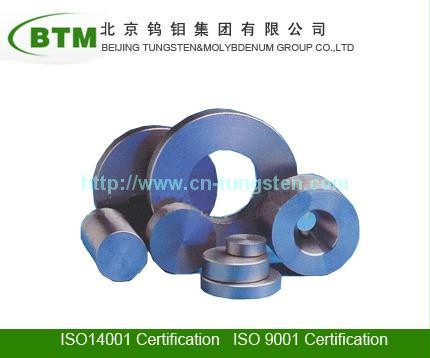

Tungsten Copper (W-Cu) Composite Materials


Tungsten Copper (WCu) Alloy from BTM Group is a powder metallurgical material suffered from severe deformation with copper contents from 10 to 60 %. Tungsten Copper materials can be joined by welding or brazing with various supporting materials.

Advantages of Tungsten Copper(WCu) Alloy:

high arc resistance combined with good electrical conductivity

high thermal conductivity
low thermal expansion
high electrical conductivity

1:Typical areas of application:
arcing contacts in high and medium voltage breakers for transmission and distribution of electrical power

carrier plates or heat sinks as passive cooling elements of electronic devices
erosion electrodes for EDM made of Sparkal
electrodes for other applications (surge protection, welding, laser applications)

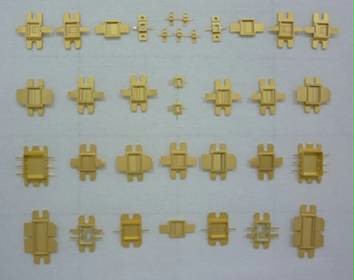

2:Applications of BTM Group’s Tungsten Copper  and Molybdenum Copper  Materials

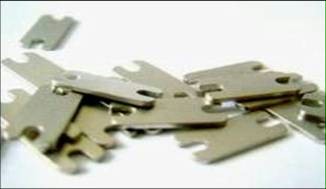

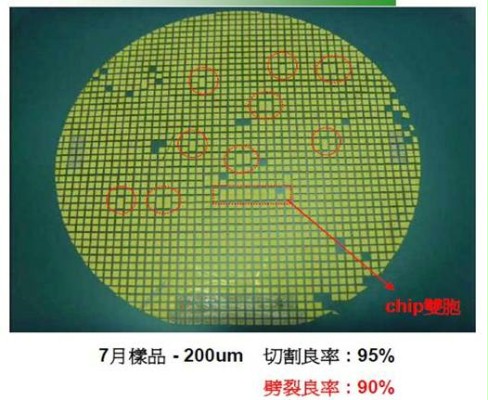

Tungsten Copper  in LED lighting

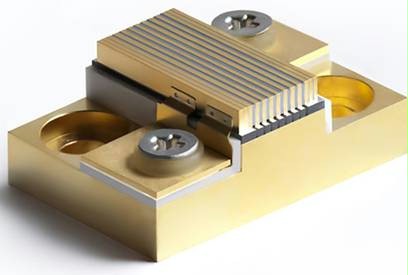

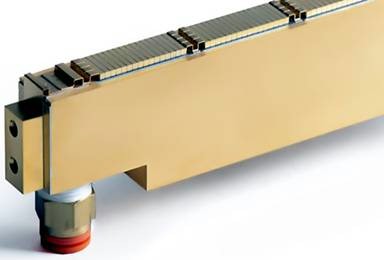

Tungsten Copper Heat sink in Laser lighting





3:BTM Group’s Special Processing for Tungsten Copper  sheet manufacturing

Quantify powder®Powder granulate
Powder compacting with patents
High temperature sintering once time
Cold rolling®Fine rolling
Heat treatment
Precision machining

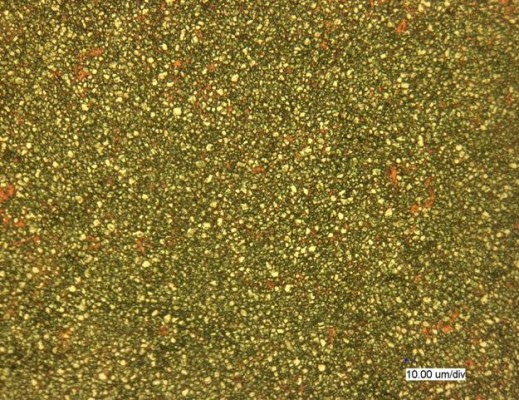

4:Microstructures

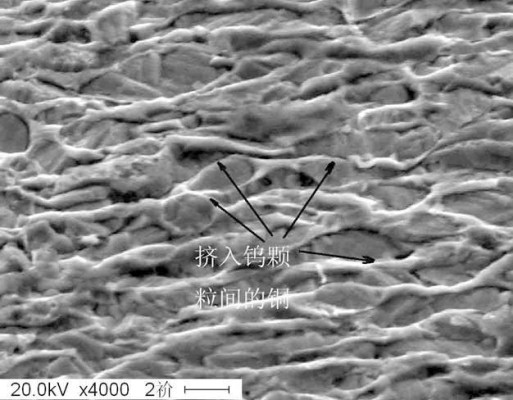

Powder Compacting state



                          2000 x                                              4000 x



                          SEM EDS                                      2000 x85WCu



                   500 x 89WCu                                        2000 x85WCu





Precision Machining

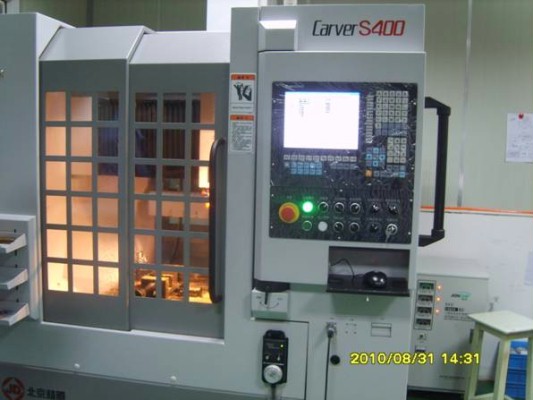

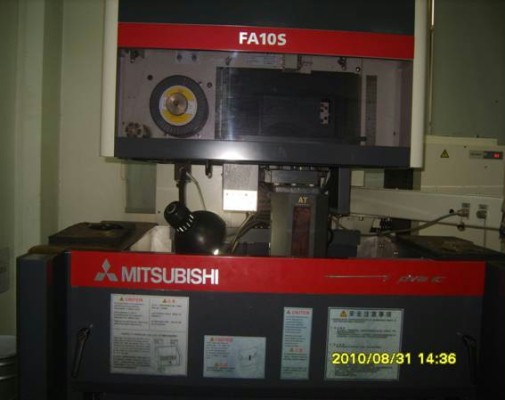

              CNC for machining                                                     EDM for machining

5:Sizes of Tungsten Copper  and Molybdenum Copper  Alloy



Rods:
90Tungsten Copper /90Molybdenum Copper  : Die(5~75)×(0.10~20)mm
85Tungsten Copper /85Molybdenum Copper  : Die(5~75)×(0.04~20)mm
80Tungsten Copper /80Molybdenum Copper  : Die(5~75)×(0.04~20)mm
75Tungsten Copper /75Molybdenum Copper  : Die(5~75)×(0.04~20)mm
70Tungsten Copper /70Molybdenum Copper  : Die(5~75)×(0.04~20)mm
65Tungsten Copper /65Molybdenum Copper  : Die(5~75)×(0.04~20)mm
60Tungsten Copper /60Molybdenum Copper  : Die(5~75)×(0.04~20)mm
55Tungsten Copper /55Molybdenum Copper  : Die(5~75)×(0.04~20)mm
50Tungsten Copper /50Molybdenum Copper  : Die(5~75)×(0.04~20)mm

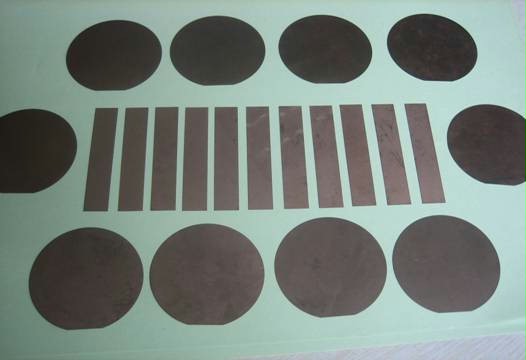

6:Plate or Foil:
90Tungsten Copper /90Molybdenum Copper  : min thinkness:0.085mm
85Tungsten Copper /85Molybdenum Copper  : min thinkness:0.04mm
80Tungsten Copper /80Molybdenum Copper  : min thinkness:0.04mm
 ...

Special sizes are available, please contact sales for inquiries.
