Product details:

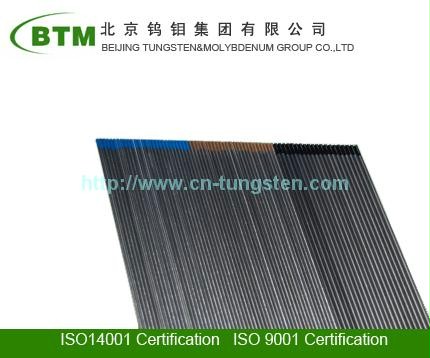

2% lanthanated tungsten electrodes (AWS classification EWLa-2), which contain a minimum of 97.80% tungsten, 1.80 to2.20% lanthanum, has been the most popular alternative to 2% thoriated tungsten electrode for most applications in American ,Europen countries and Japan. It can be used for both AC and DC welding with both inverter and transformer power sources. this tungsten electrodes have much longer life than 2% thoriated tungsten electrodes if not overloaded and better arc starting.

Choose sizes from following table

Type	Diameter	Length	Composition	Materials Welded
EWLa-20	0.5 mm	150/175mm	La2O3 Balance: Tungsten	Carbon steel Stainless steel Copper Aluminum
	1.0mm	150/175mm
	1.6mm	150/175mm
	2.0mm	150/175mm
	2.4mm	150/175mm
	3.0mm	150/175mm
	3.2mm	150/175mm
	4.0mm	150/175mm
	4.8mm	150/175mm
	5.0mm	150/175mm
	6.0mm	150/175mm
	7.0mm	150/175mm
	8.0mm	150/175mm
	10.0mm	150/175mm
	12.0mm	150/175mm

All 2% lanthanated tungsten electrode is packaged 10 pieces of 150mm or 175mm.
Special diameters and lengths are available, please contact sales for inquiries.
