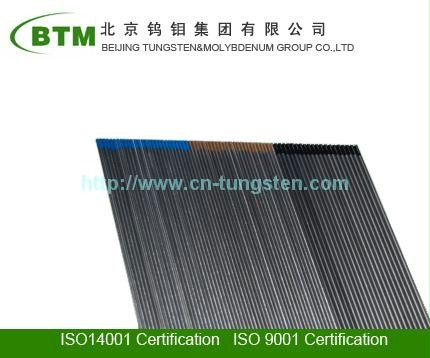

Tungsten Electrode

Product Name: 1.0% Lanthanated (EWLa-10)
Place of Origin: Beijing China
Composition: Tungsten
Application:

Arc Gas Welding

Weight: 0.00g
Packaging: 10pcs per plastic box,120box per carton
Views: 151

Content

Product details:

1.0% lanthanated (EWLa-10)
1.0% lanthanated tungsten electrodes (AWS classification EWLa), which contain a minimum of 97.80% tungsten, 0.80 to 1.20% lanthanum and 0.5% other, has been the most popular alternative to 2% thoriated tungsten electrode for most industry in American ,Europen countries and Japan.La2O3 has the lowest work function of any electrode. Hundreds of Thousands experiments told us that 1½% lanthanated tungsten electrodes have much longer life than 2% thoriated tungsten electrodes if not overloaded and better arc starting.





Choose sizes from following table



     Type    Diameter      Length  Composition  Materials Welded
EWLa-10  0.5 mm  150/175mm  La2O3
Balance: Tungsten

Carbon steel
Stainless steel
Copper
Aluminum
1.0mm 150/175mm
1.6mm 150/175mm
2.0mm 150/175mm
2.4mm 150/175mm
3.0mm 150/175mm
3.2mm 150/175mm
4.0mm 150/175mm
4.8mm 150/175mm
5.0mm 150/175mm
6.0mm 150/175mm
7.0mm 150/175mm
8.0mm 150/175mm
10.0mm 150/175mm
12.0mm 150/175mm




All 1% lanthanated tungsten electrode is packaged 10 pieces of 150mm or 175mm.
Special diameters and lengths are available, please contact sales for inquiries.


Tel:86-10-58466676   Fax:86-10-57228751


Email: marketing@cn-tungsten.com or btmgroupkitty@gmail.com



Related products:

Tri-mix tungsten electrode; 2.0% Thoriated tungsten electrode;Pure Tungsten tungsten electrode;

1.0% lanthanated tungsten electrode;1.5% lanthanated tungsten electrode; 2.0% lanthanated tungsten electrode;

2.0% Yttriated tungsten electrode; 0.3% Zirconiated tungsten electrode;0.8% Zirconiated tungsten electrode.
