Tungsten Electrode

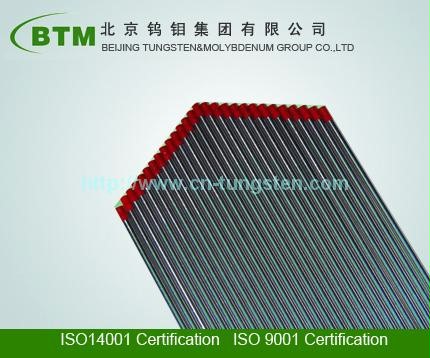

Product Name: 2% Thoriated (EWTh-20)
Place of Origin: Beijing,China
Composition: Tungsten
Application:

Gas Tungsten Arc Welding and Plasma Arc Welding

Weight: 0.00g
Packaging: 10pcs per plastic box, 120box per carton
Views: 1904

Content

Product details:

2% thoriated tungsten electrodes(EWTh-2) is the rare earth tungsten electrode which uses most early, is also the best tungsten electrode in welding performance until now , therefore, this tungsten electrode(EWTh-2) market share is globally highest, but because of the radioactive contamination in the powder metallurgy and the rolling process, European ,American developed countries limited to use the 2% thoriated tungsten electrodes(EWTh-2).because of its fine welding performance, its use has not been restricted. Thorium is a low-level radioactive material that primarily emits alpha particles as well as some beta and gamma radiation. However, if welding is to be performed in confined spaces for prolonged periods of time or if electrode grinding dust might be ingested, special precautions relative to ventilation should be considered. The user should consult appropriate safety personnel. So many users have switched to other alternatives. 2% thoriated tungsten electrodes are widely used because they make good welds and are long lasting and quite easy to use. A thoriated tungsten electrode operates at a temperature well below its melting temperature. this tungsten electrode is used primarily for DC welding and may split if used for AC welding Material welded is primarily Aluminum and Magnesium






Choose sizes from following table



  Type    Diameter      Length  Composition  Materials Welded
EWTH-2 0.5 mm 150/175mm  THO2
Balance: Tungsten
Carbon steel
Stainless steel
Titanium
Nickel alloy
Copper
Aluminum
1.0mm 150/175mm
1.6mm 150/175mm
2.0mm 150/175mm
2.4mm 150/175mm
3.0mm 150/175mm
3.2mm 150/175mm
4.0mm 150/175mm
4.8mm 150/175mm
5.0mm 150/175mm
6.0mm 150/175mm
7.0mm 150/175mm
8.0mm 150/175mm
10.0mm 150/175mm
12.0mm 150/175mm



All 2% thoriated tungsten electrodes is packaged 10 pieces of 150mm or 175mm.
Special diameters and lengths are available, please contact sales for inquiries.
