Tungsten Electrode

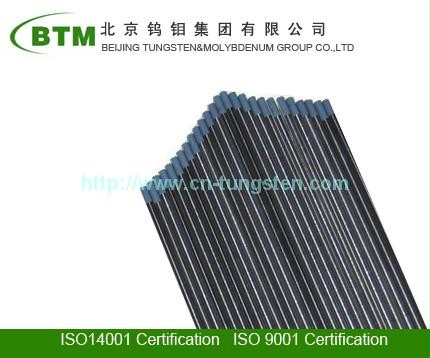

Product Name: 2% Ceriated Tungsten electrode
Place of Origin: Beijing China
Composition: Tungsten 99.95%
Application:

Arc Gas Welding

Weight: 0.00g
Packaging: 10pcs per plastic box,120box per carton
Views: 363

Content

Product details:

2% Ceriated tungsten electrodes (AWS classification EWCe-2), which contains a minimum of 97.30% tungsten and 1.80 to 2.20% cerium, was known as the first non-radioactive alternative to 2% thoriated tungsten electrode. It is especially excellent for DC welding with low amperage because it starts very easily at low amperages. It is commonly used in welding orbital tube ,pipe and small or delicate parts. Like thorium, it is best used to weld carbon steel, stainless steels, nickel alloys and titanium, making it an obvious replacement for 2% thoriated tungsten electrode. This tungsten electrode is used primarily for DC welding and may split if used for AC welding. 2% Ceriated tungsten electrode features slightly different electrical characteristics than thorium but most operators won’t be able to tell the difference. Using 2% Ceriated tungsten electrode at higher amperages is not recommended. In these situations, the oxides will migrate quickly to the heat at the tip, removing the oxide content and nullifying its process benefits.





Choose sizes from following table





Type Diameter Length Composition



Materials welded


    EWCe-20  0.5 mm  150/175mm

CeO2
Balance: Tungsten

Carbon steel
Stainless steel
Copper
Aluminum
1.0 mm 150/175mm
1.6 mm 150/175mm
2.0 mm  150/175mm
2.4 mm 150/175mm
3.0 mm 150/175mm
3.2 mm  150/175mm
4.0 mm 150/175mm
4.8 mm 150/175mm
5.0 mm  150/175mm
6.0 mm 150/175mm
7.0 mm 150/175mm
8.0 mm 150/175mm
10.0 mm  150/175mm
 12.0 mm  150/175mm





 All 2% ceriated tungsten electrode is packaged 10 pieces of 150mm or 175mm.
Special diameters and lengths are available, please contact sales for inquiries.
