Tungsten Electrode

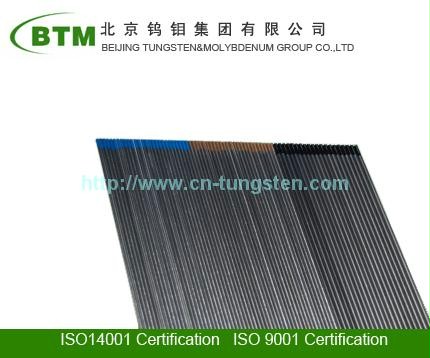

Product Name: 1.5% Lanthanated (EWLa-15)
Place of Origin: Beijing China
Composition: Tungsten
Application:

Arc Gas Welding

Weight: 0.00g
Packaging: 10 pcs per plastic box,120 box per carton
Views: 419

Content

Product details:

1.5% lanthanated (EWLa-15)

1.5% lanthanated tungsten electrodes (AWS classification EWLa-1.5), which contain a minimum of 97.80% tungsten, 1.30 to 1.70% lanthanum and 0.5% other, has been the most popular alternative to 2% thoriated tungsten electrode for most industry in American ,Europen countries and Japan.La2O3 has the lowest work function of any electrode. Hundreds of Thousands experiments told us that 1½% lanthanated tungsten electrodes have much longer life than 2% thoriated tungsten electrodes if not overloaded and better arc starting. It is best used to weld carbon steel, stainless steels, nickel alloys and titanium because its longer life reduces down time. Also, as a general rule it will probably require 15% amperage to start and keep the low current. More importantly 1.5% Lanthanated tungsten electrodes work well on AC or DC situation. Since 1998, BTM Group has been offering this tungsten electrode.







Choose sizes from following table



 Type  Diameter  Length  Composition  Materials Welded
EWLa-15     0.5 mm  150/175mm La2O3
Balance: Tungsten


Carbon steel
 Stainless steel
 Copper
 Aluminum

1.0mm 150/175mm
1.6mm 150/175mm
2.0mm 150/175mm
2.4mm 150/175mm
3.0mm 150/175mm
3.2mm 150/175mm
4.0mm 150/175mm
4.8mm 150/175mm
5.0mm 150/175mm
6.0mm 150/175mm
7.0mm 150/175mm
8.0mm 150/175mm
10.0mm 150/175mm
12.0mm 150/175mm





All 1.5% lanthanated tungsten electrode is packaged 10 pieces of 150mm or 175mm.
Special diameters and lengths are available, please contact sales for inquiries.


Tel:86-10-58466676   Fax:86-10-57228751


Email: marketing@cn-tungsten.com or btmgroupkitty@gmail.com



Related products:

Tri-mix tungsten electrode; 2.0% Thoriated tungsten electrode;Pure Tungsten tungsten electrode;

1.0% lanthanated tungsten electrode;1.5% lanthanated tungsten electrode; 2.0% lanthanated tungsten electrode;

2.0% Yttriated tungsten electrode; 0.3% Zirconiated tungsten electrode;0.8% Zirconiated tungsten electrode.
