Product details:

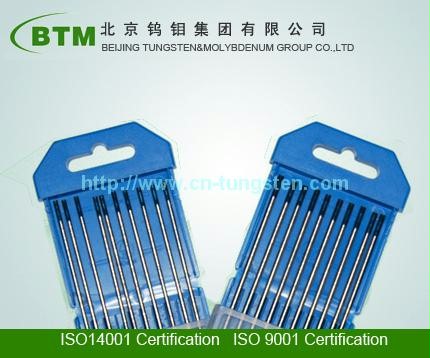

2.0% Yttriated (EWY-20)
2.0% yttriated tungsten electrode (AWS classification EWY-20) ,which contain a minimum of 97.30% tungsten and .15 to .40%yttrium, is sometimes used for AC welding. it applies in military industry with narrow arc beam and high compressing strength.

Choose sizes from following table

Type	Diameter	Length	Composition	Materials Welded
EWLY-20	0.5 mm	150/175mm	Y2O3 Balance: Tungsten	Carbon steel Stainless steel Copper Aluminum
	1.0 mm	150/175mm
	1.6 mm	150/175mm
	2.0 mm	150/175mm
	2.4 mm	150/175mm
	3.0 mm	150/175mm
	3.2 mm	150/175mm
	4.0 mm	150/175mm
	4.8mm	150/175mm
	5.0 mm	150/175mm
	6.0 mm	150/175mm
	7.0 mm	150/175mm
	8.0 mm	150/175mm
	10.0 mm	150/175mm
	12.0 mm	150/175mm

All 2% yttriated tungsten electrode is packaged 10 pieces of 150mm or 175mm.
Special diameters and lengths are available, please contact sales for inquiries.
