Home-Products-Tungsten Electrode

Tungsten Electrode

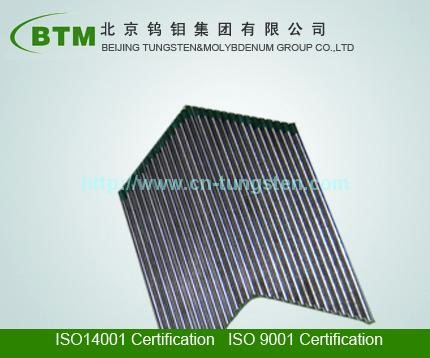

Product Name: Pure Tungsten Electrode(EWP)
Place of Origin: Beijing China
Composition: Tungsten 99.95%
Application:

Arc Inert Gas Welding

Weight: 0.00g
Packaging: 10pcs per plastic box,120box per carton
Views: 246

Content

Product details:

Pure tungsten electrode (EWP) are basically unalloyed; it contain a minimum of 99.5% wt -% tungsten and has a very high work function. So arc starting becomes more difficult than other tungsten electrode and keeping the stable arc are not easy and it has a shorter life since we weld the metals like aluminum and magnesium. However as known to all these electrodes are the most economical and are considered good for general purpose welding. We have to be noted that the pure tungsten electrode can be only used in AC welding, however; better alternatives are available.



Choose sizes from following table



 Type  Diameter     Length   Composition  Materials Welded

       EWP
0.5 mm 150/175mm   Tungsten:99.95%

Magnesium



Aluminum

1.0 mm  150/175mm
1.6mm  150/175mm
2.0 mm 150/175mm
2.4 mm 150/175mm
3.0 mm 150/175mm
3.2 mm 150/175mm
4.0 mm 150/175mm
4.8mm 150/175mm
5.0 mm 150/175mm
6.0 mm 150/175mm
7.0 mm 150/175mm
8.0 mm 150/175mm
10.0 mm 150/175mm
12.0 mm 150/175mm



All pure tungsten electrode is packaged 10 pieces of 150mm or 175mm.
Special diameters and lengths are available, please contact sales for inquiries.
